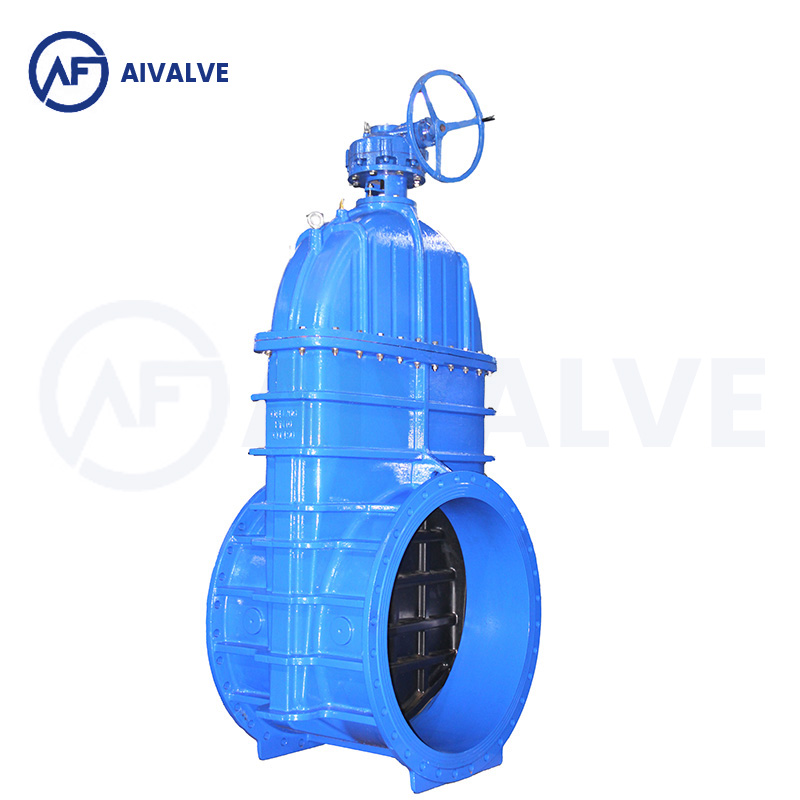

BS5163 Bevel Gear Resilient Seated Gate Valve

Bevel gear cast iron valve is a type of valve widely used in industrial pipeline systems. Its core advantages are reflected in material properties, structural design and operating efficiency. First of all, the cast iron valve body has excellent corrosion resistance and wear resistance, and can adapt to a variety of media such as water, steam, and oil. At the same time, cast iron materials have low cost and good casting performance, which is suitable for mass production and has significant economic efficiency. Secondly, the bevel gear (bevel gear) transmission mechanism can amplify the handwheel operating torque through the gear reduction principle, realizing the labor-saving opening and closing of large-caliber valves, which is especially suitable for high-pressure or high-frequency operation scenarios, reducing labor intensity. In addition, the bevel gear structure has a self-locking function, which can accurately control the valve disc position, ensure the stability of flow regulation and sealing reliability, and reduce the risk of internal leakage. The overall structure of the valve is sturdy and has strong pressure-bearing capacity. The cast iron surface is easy to form an oxidation protective layer, which prolongs its service life. In terms of maintenance, the modular design of the bevel gear assembly is easy to disassemble and repair, and with the elastic valve seat or metal sealing structure, it further improves the adaptability to working conditions. In general, this valve has become a key fluid control equipment in the fields of municipal administration, petrochemicals, energy, etc. due to its high cost-effectiveness, strong durability, easy operation and simple maintenance.

Corrosion and wear resistance: cast iron valve body is suitable for a variety of media (water, steam, oil, etc.), and the surface oxide layer enhances durability.

Economical and practical: cast iron has low cost, mature casting technology, and is suitable for mass production.

Labor-saving operation: bevel gear transmission amplifies torque, easily opens and closes large-diameter valves, and reduces labor intensity.

Precise control: the gear self-locking function ensures stable valve disc position, reliable sealing, and reduced leakage.

Sturdy structure: high pressure bearing capacity, strong impact resistance, suitable for high pressure or complex working conditions.

Easy maintenance: modular gear components are easy to disassemble and replace, and the elastic/metal seal design is adapted to different needs.

Wide application: strong versatility in municipal water supply, petrochemical, energy systems and other fields.
