Check Valve
Features
Porous filter: 6-12 water inlets (aperture 1.5-5mm) + 304 stainless steel quick-release filter (interception rate ≥ 95%)
Composite valve disc: cast iron body + rubber seal (hardness 70 Shore A), weight optimization to achieve 0.3m/s flow rate opening

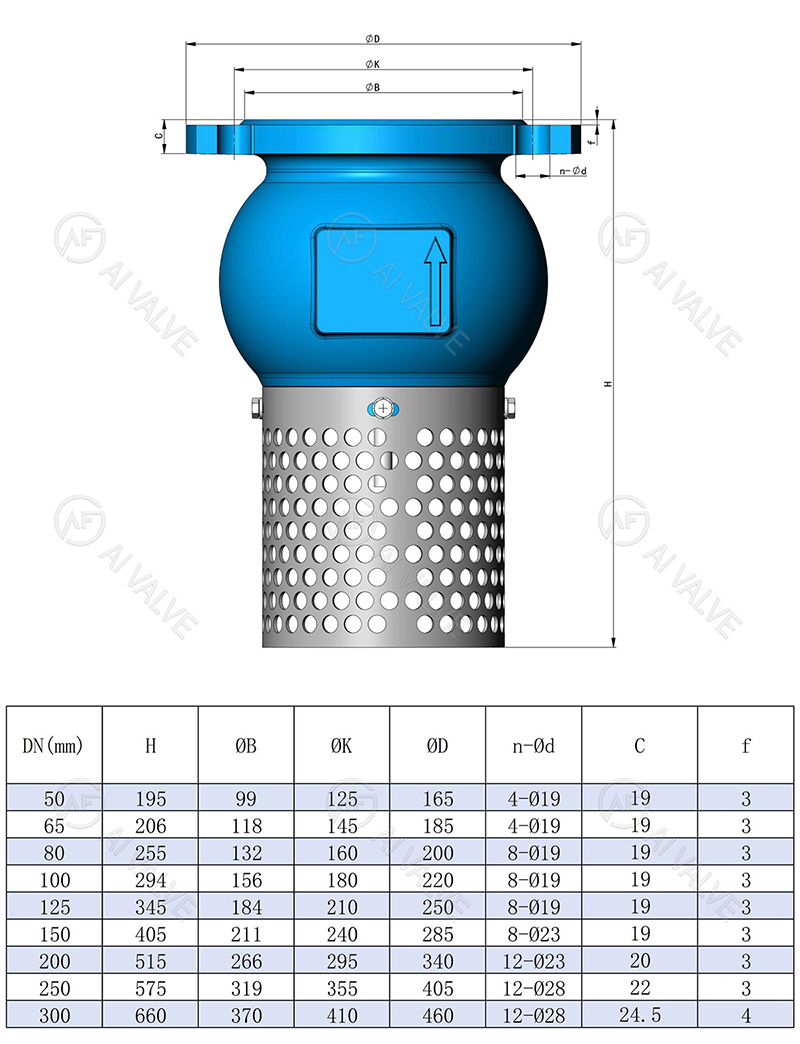

Technical Parameters
Product Description
·Porous filter: 6-12 water inlets (aperture 1.5-5mm) + 304 stainless steel quick-release filter (interception rate ≥ 95%)
·Composite valve disc: cast iron body + rubber seal (hardness 70 Shore A), weight optimization to achieve 0.3m/s flow rate opening
·Seal: Fluororubber O-ring (temperature resistance -30℃~150℃)
·Low-pressure start: 0.02MPa pressure difference can be opened, flow resistance coefficient as low as 0.15
·Quick closing: two-stage valve closing (0.3-0.8 seconds), water hammer pressure fluctuation suppression 60%
·Self-cleaning: the valve disc falls to generate vortex, automatically remove impurities on the sealing surface

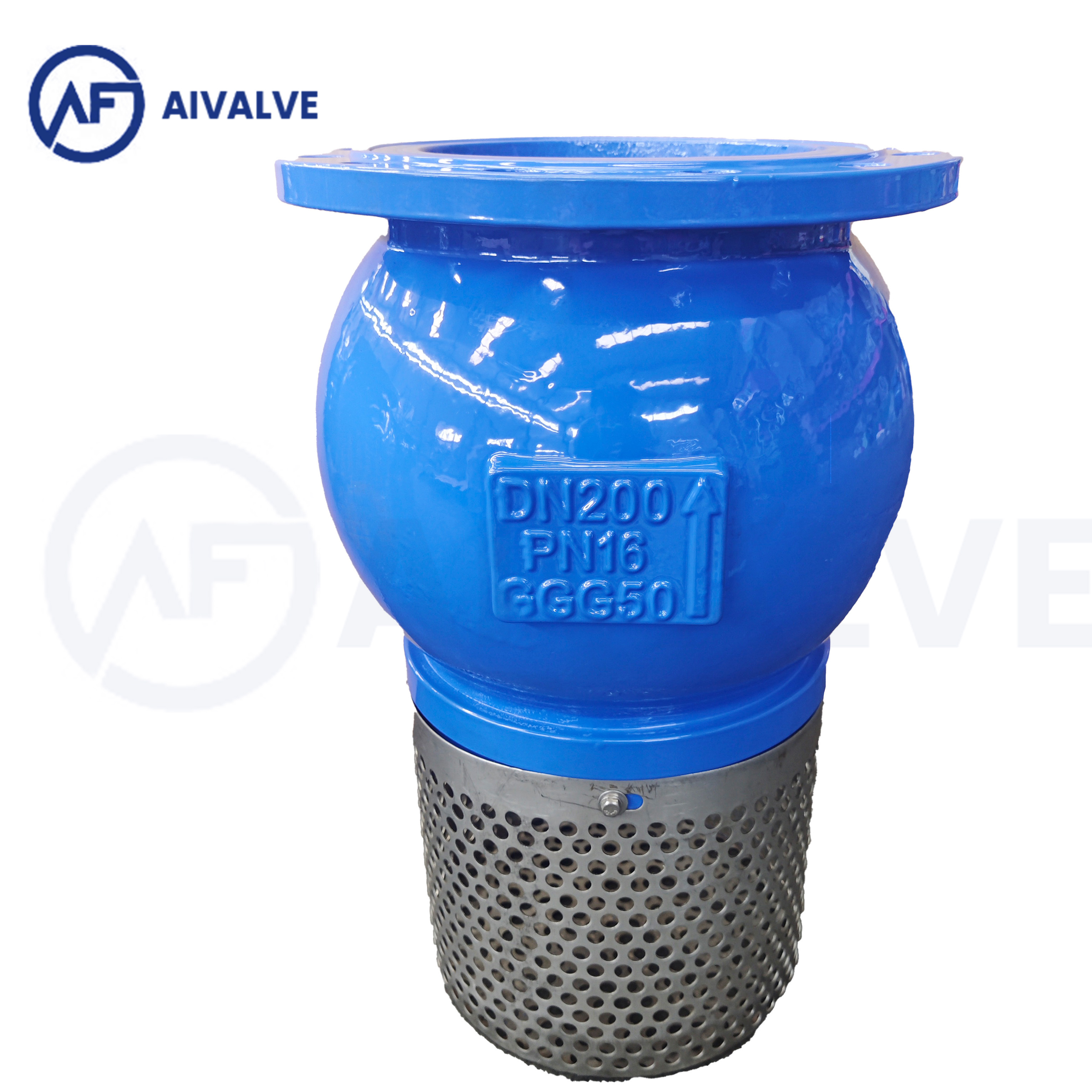

The bottom valve is a kind of check valve. It is a valve used to prevent the backflow of media in the pipeline. When the medium flows downstream, the bottom valve is opened, and when the medium flows in the reverse direction, the bottom valve is automatically closed. The bottom valve is provided with a plurality of water inlet on the valve cover, and is provided with a screen to reduce the inflow of debris and is not easy to block.
