Check Valve

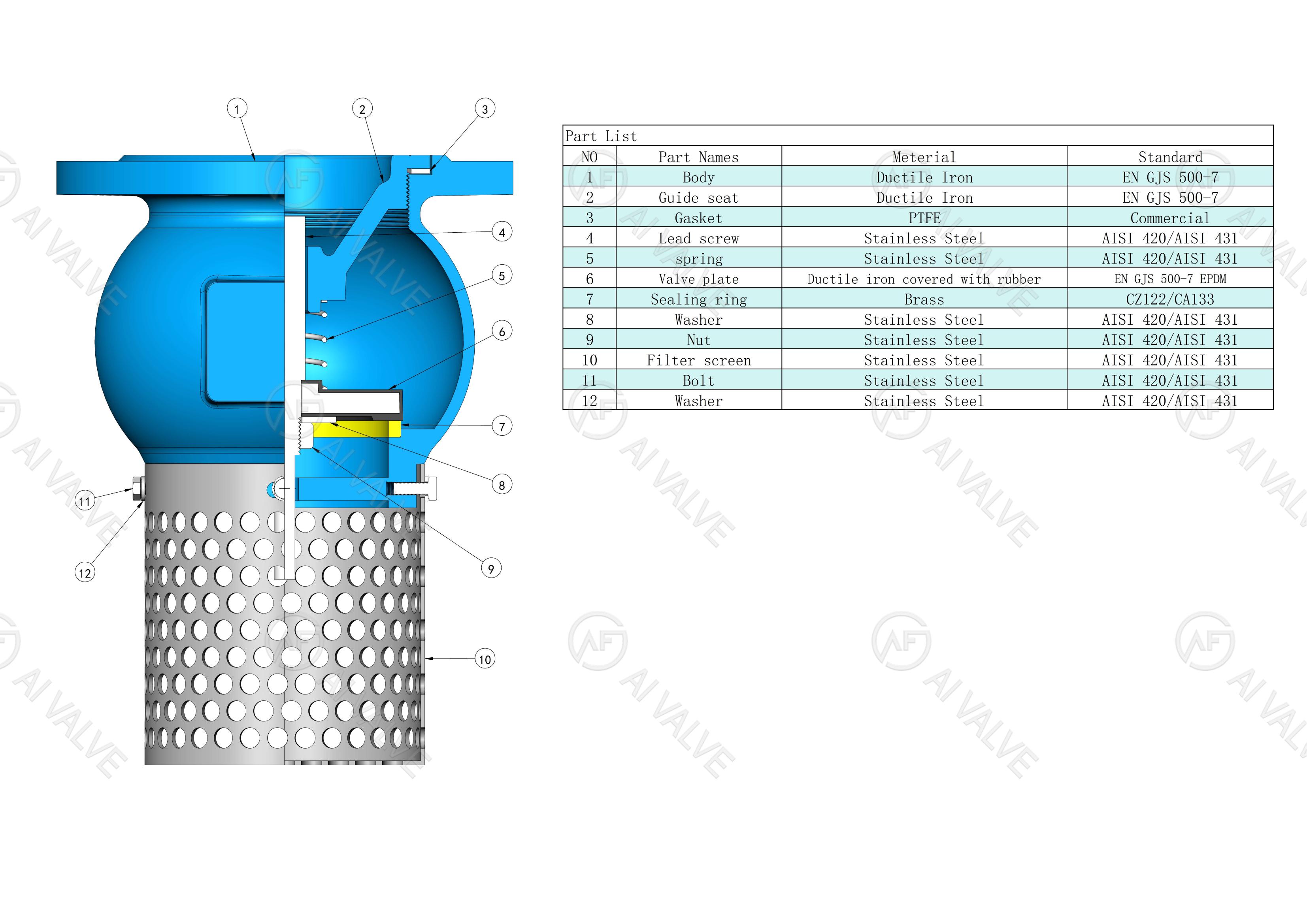

The foot valve (Japanese: フットバルブ or 吸水弁) is a special type of check valve designed specifically for installation at the very bottom of the suction pipe of a water pump (the suction port).
The foot valve (Japanese: フットバルブ or 吸水弁) is a special type of check valve designed specifically for installation at the very bottom of the suction pipe of a water pump (the suction port). It is an important valve within the Japanese Industrial Standards (JIS) system. Its main function is to maintain the water-filled state within the pump and the suction pipe, prevent "cavitation" during startup， and prevent the backflow of the medium.Reference standard: JIS B 2031 (General Standard for Cast Iron Check Valves)
Maintain water priming:
When the water pump stops, the bottom valve automatically closes by means of the valve flap (mostly lift type or swing type), sealing the water inside the pump body and the suction pipe to prevent it from flowing back to the water source (such as a water pool or well).
When restarting the water pump, there is no need to refill water; it can be used to draw water directly.
Prevent impurities from being inhaled:
The bottom of the valve body is usually equipped with a strainer to prevent sand and debris from entering the pipeline and to protect the impeller of the water pump.
