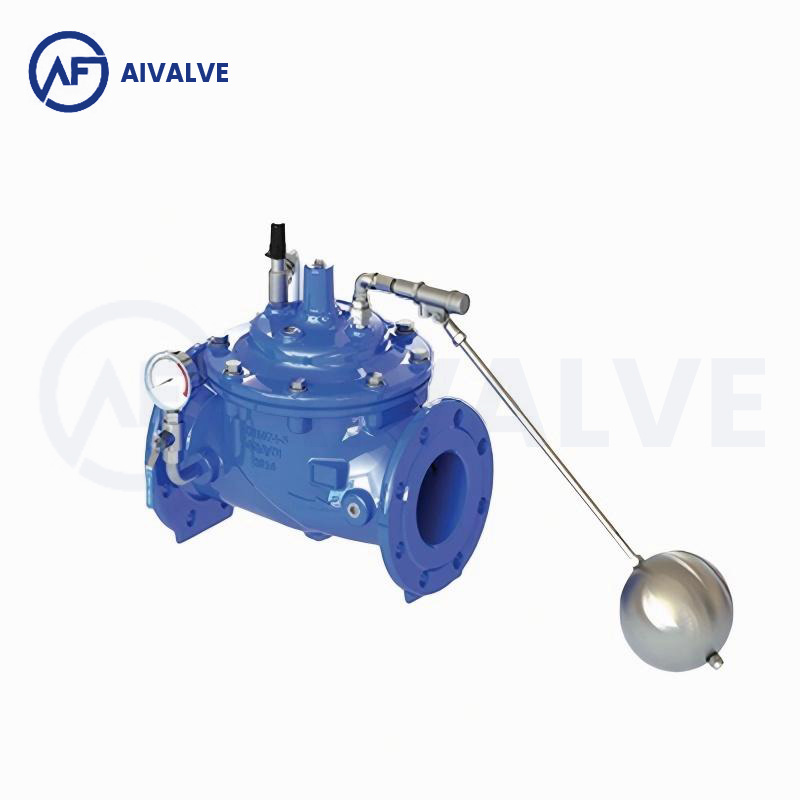

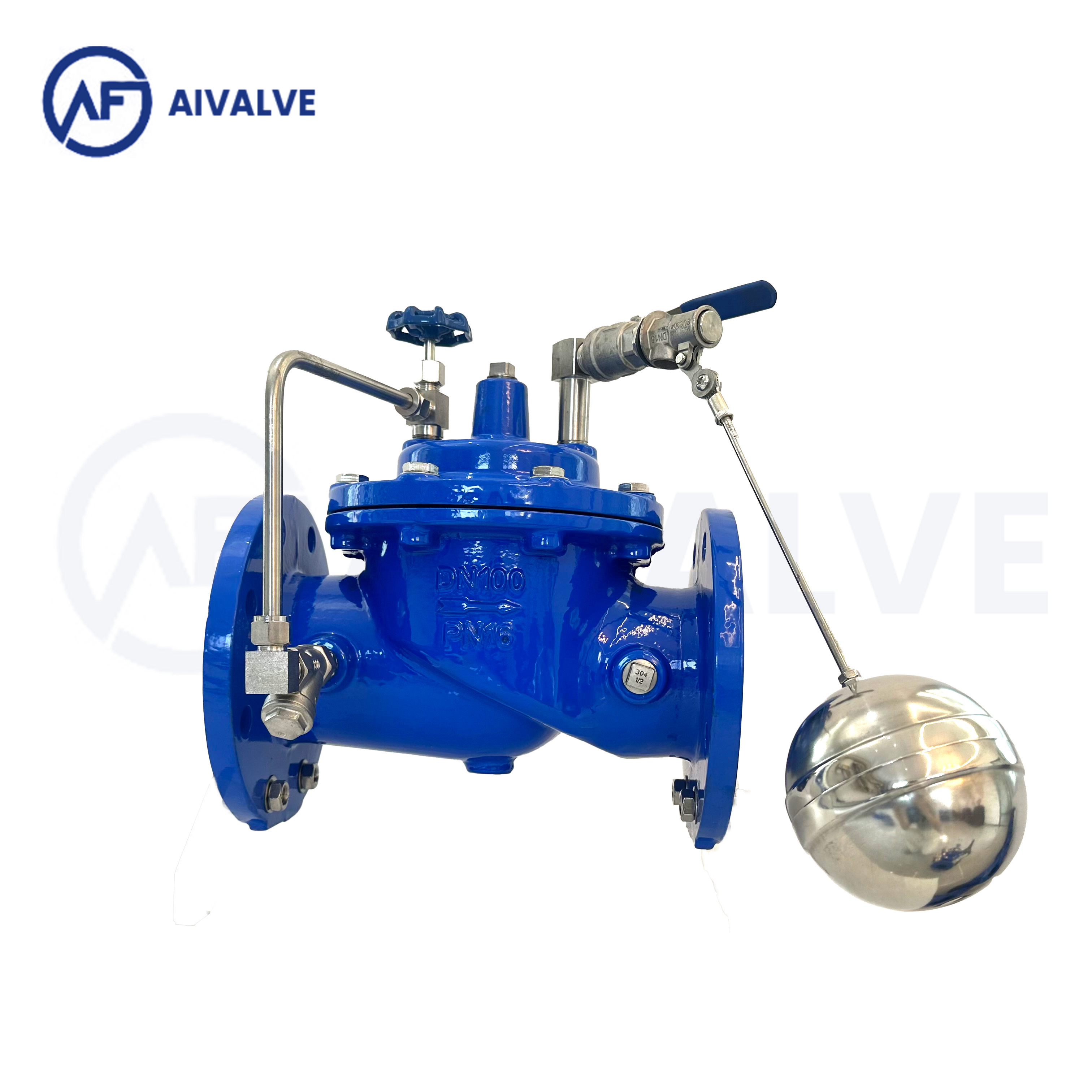

Float Ball Valve

Features

Novel and reasonable structure

Smooth and reliable work, large flow

The valve disc opens quickly and closes slowly, without water hammer impact (closing time is adjustable)

The non-return sealing effect is good and the service life is long.

Easy to install and and maintain

Inquire Now Next Products Download

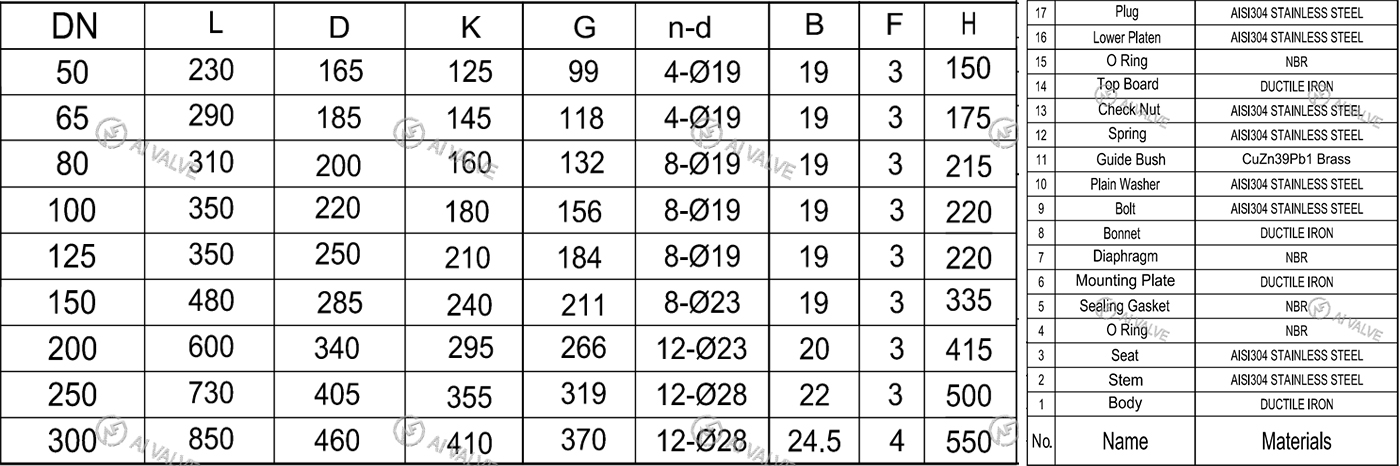

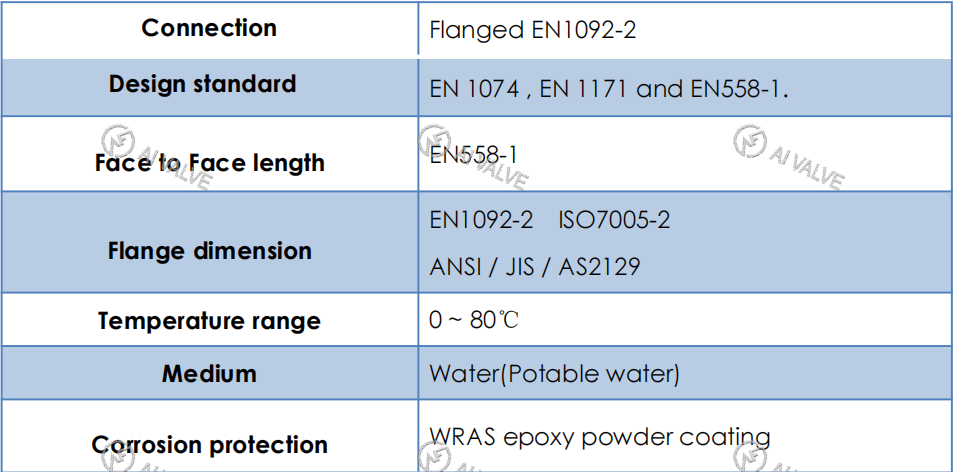

Technical Parameters

Float Ball Valve

Product Description

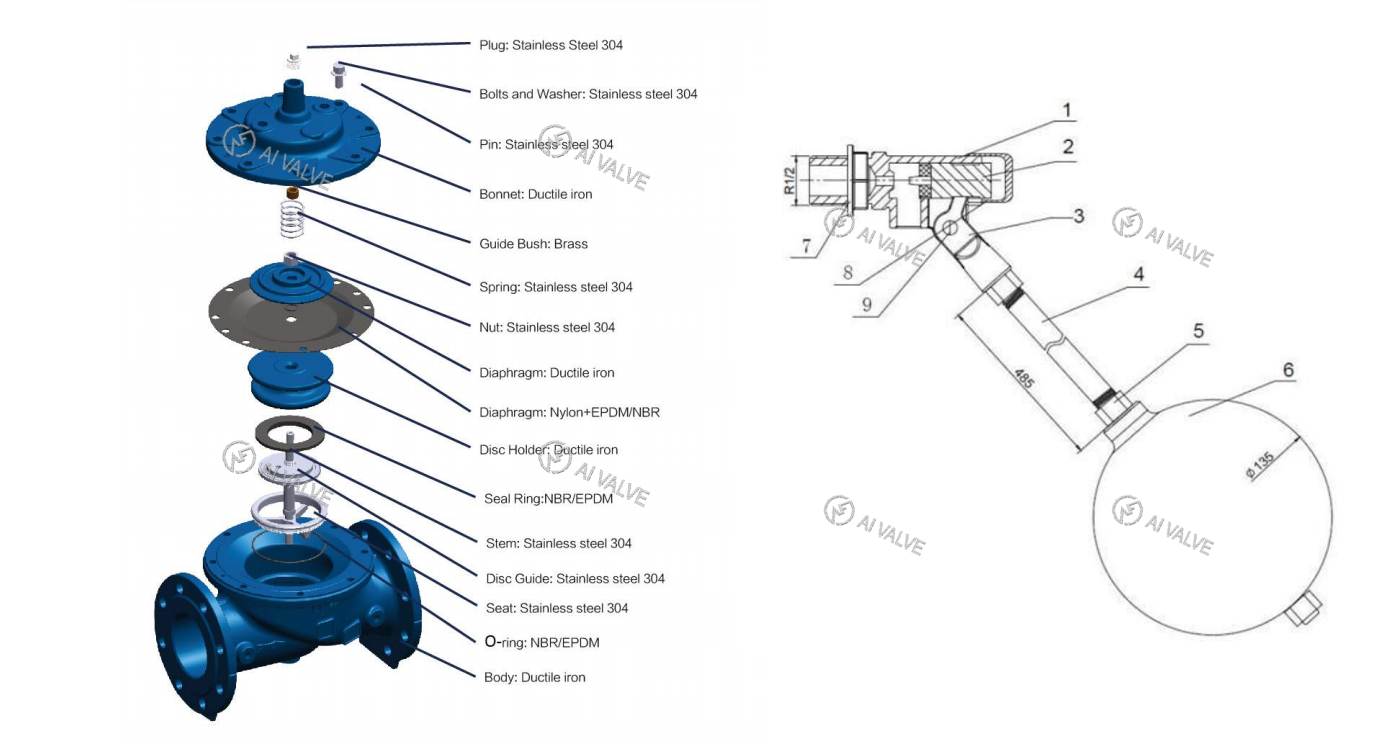

The valve consists of main valve and an external pilot valve. It is the use of float ball in the water by the change of the liquid level of the pilot valve，to control the main valve supply water and close, in order to make the water level of the pool (box) and the water tower is controlled within a certain range to prevent overflow and water level overflow.

This valve is suitable for various types of automatic water supply system for Industrial and mining enterprises, civil buildings’ pools (boxes) and water towers .Also used for normal pressure boiler circulation supply system. The main valve opens quickly and closes slowly, no water hammer produced , the seal is tight and there is no risk of flooding.
