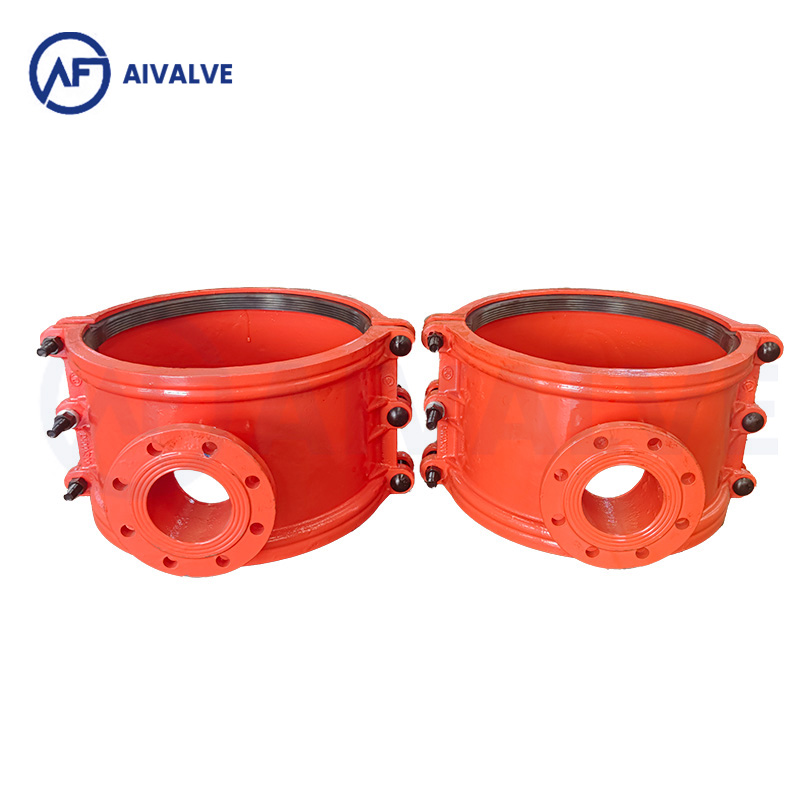

Saddle Clamp

Cast iron body: Made of gray cast iron or ductile iron, with a sturdy structure, usually designed as a three-way or four-way form with multiple interfaces.

Sealing gasket: Embedded rubber or polytetrafluoroethylene (PTFE) gasket to ensure the sealing of the interface.

Fastening bolts: Made of carbon steel or stainless steel, used to compress the clamp and pipe to prevent leakage.

Diversion/merging control: Distribute the main pipeline medium to multiple branches (such as water supply network branches), or merge branches into the main pipeline.

Pipeline fixation: Stabilize the connection point through the clamp structure to reduce the risk of leakage caused by vibration or displacement.

Inquire Now Next Products Download

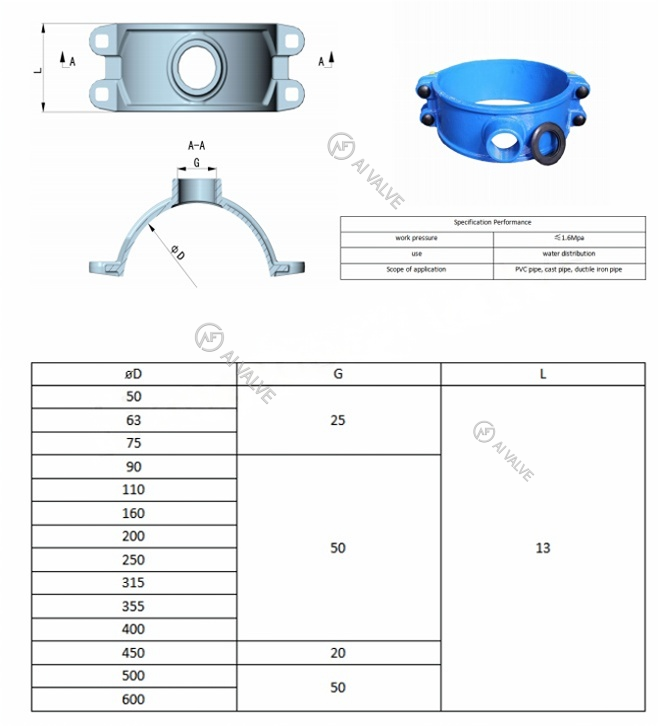

Technical Parameters

Product Description

The saddle clamp is a pipe fitting suitable for pipe connection and branch. 1. Structural composition: It is composed of a saddle-shaped pipe body, a sealing rubber ring and bolts. 2. It is applicable to urban water supply and drainage projects, used to draw off branch pipes from the main pipe and supply water to various user areas.

3. Working principle: By closely combining the saddle body of the saddle clamp with the surface of the main pipe, the elastic deformation of the sealing rubber fills the gap, and then the two parts are fastened with bolts to form a seal between the saddle clamp and the main pipe, thereby achieving the function of drawing off branch pipes from the main pipe.

4. It is easy to install and can effectively save installation time and labor costs.

Related Products

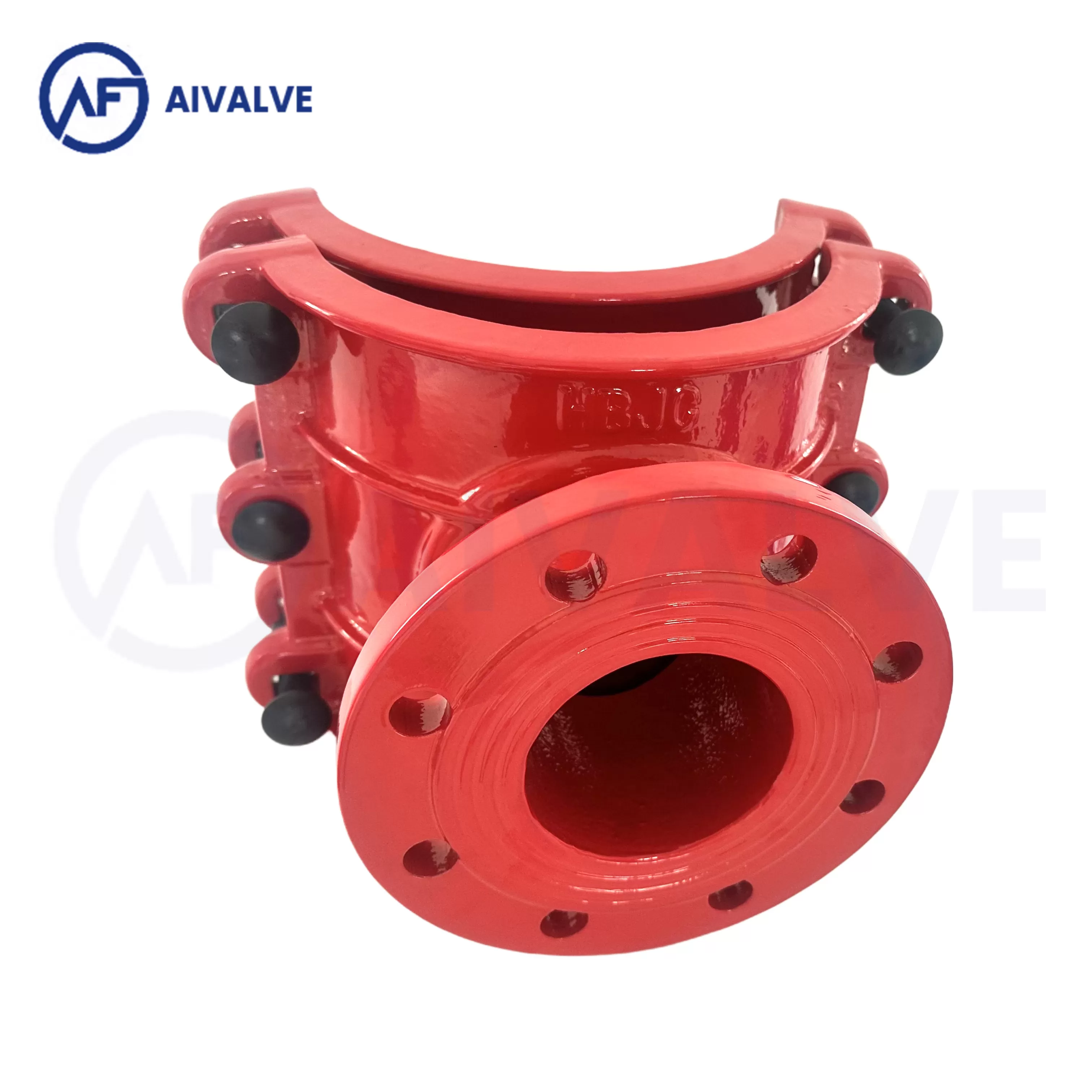

Saddle Clamp（No Rubber）
