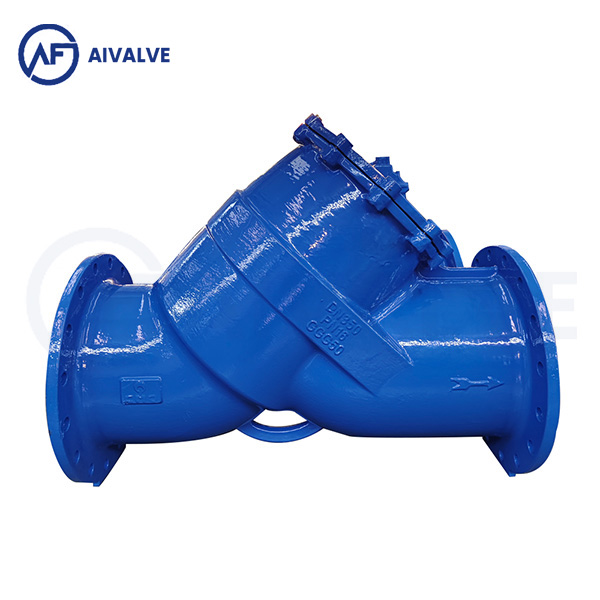

Y Strainer

Y-type filter (water filter) belongs to the pipeline coarse filter series and can also be used for gas or other large particle filtering, installed on the pipeline can remove larger solid impurities in the fluid.

Inquire Now Download

Technical Parameters

Medium: Neutral water, Drinking water, Sewage

Temperature Range: 0℃ - 80℃

Bonnet and cover bolts are in A2-70 (AISI 304),

Coating - Electrostatically applied fusion bonded epoxy coating inside & outside for excellent corrosion resistance. Standard color RAL 5005, other colors upon request.

Designed and built to widely recognized standards.

100% testing before packing and delivery

Design specifications: HG/T21637

Structure length: GB/12221

Flange standard: GB/T 17241.6

Testing and inspection: JB/9092

Supply specifications: JB/T 7928

Y Strainer

Product Description

Enable machinery and equipment (including compressors, pumps, etc.) and instruments to work and operate normally and achieve stability process to ensure safe production.

Y-type filter (water filter) can be customized according to customer’s requirement (special pressure, special caliber). It has the advantages of production simply, easy installation and cleaning, and Large amount of contamination.
